LT ELECTRICAL PANELS

Power and Motor Control Center
METTA-Mitsubishi (TTA) Panels
Smart Power and Motor Control Center
DG Synchronizing and Auto Load Sharing Panel
Automatic Power Factor Correction Panel
Feeder Pillers-Indoor and Outdoor (IP-65)
Meter Board Panels
Wall Mounting Type Distribution Panel
Automation and Drive Panels
Push Button Stations
Control and Relay Panels

HT PANELS UPTO 33 KV

INDOOR & OUTDOOR APPLICATIONS BUSDUCTS

Sandwich Busducts and Rising Mains (Aluminium and Copper) (Indoor / Outdoor) Air Insulated Busduct and Rising Mains

AMC & RETROFITTING SOLUTIONS

We offer AMC and Retrofitting solutions for LT, BBT and HV Panels and Transformers.

AUTHORIZED PARTNER OF RHINE JAYBEE POWER PVT. LTD. FOR THEIR PRODUCT RANGE

Distribution Transformers (upto 2.5 MVA with Volt age class of 11, 22 and 33 KV).
Power Transformers (upto 12.5 MVA with Voltage class of 11, 22 and 33 KV)
Servo stablizers E Houses HT AVR and Rectifiers
Compact Substations upto 33 KV

Unit -1 Dedicated Area for Assembly of Panels: 25000/Sqft

Unit -2 Dedicated Area for Fabrication and Painting: 8500/Sqft

CONSTRUCTION AND TECHNICAL

FEATURES OF INNOVIC MAKE PANELS

Upto 433 V 50 Hz Custom Built design
Most compact and Robust sesign with sufficient space for Cable terminations
Bolted Construction
Flexibility of modification during manufacturing or at site
HT Bolts of 8.8 grade being used in panel construction as well
3B/4B Construction
Aluminium Bus Bars of Electrolytic Grade E-91 and 57% conductivity being used
Copper Busbars of Electrolytic Grade E-91 and 99.9% conductivity being used
Shrouded Power Terminals upto 63 AMP being used & above 63 AMP Busbar Links being used
Wire Meshed / Perforated Sheet being used for ACB shrouding
All MCCBS with Spreaders and Proper shrouding for incoming terminals

PLANT AND MACHINERIES

MAJOR EQUIPMENTS USED FOR MANUFACTURING
OF ELECTRICAL PANELS

9 Tank pre-treatment shop using HENKAL make of Chemicals
Powder Coating Shop using Electrostatic Gun and WEROLEC/JOTUN make of powder
Fiber Laser Profile Cutting Machine
NC Press Brake
Shearing Machine
Drilling Machines
Hydraulic BusBar Bending, Cutting and Punching Machines
Welding Machines
Compressor

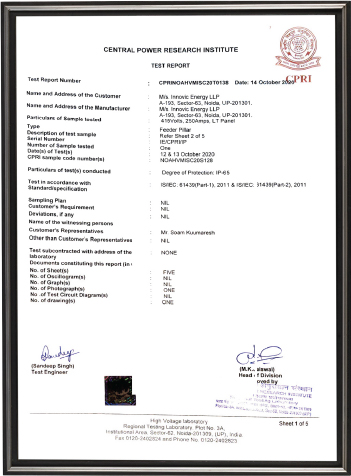

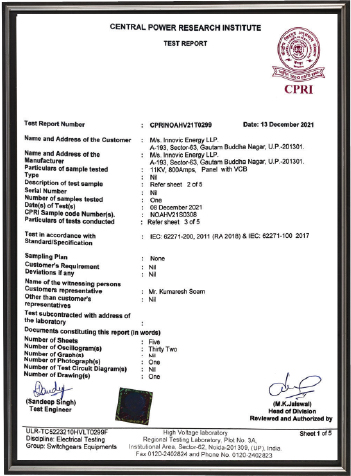

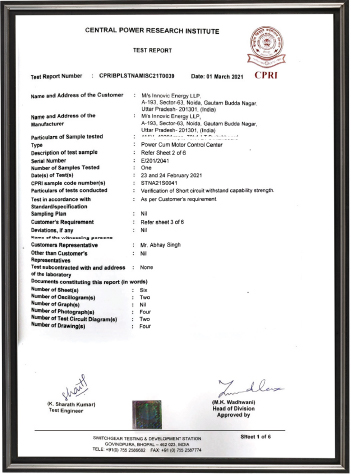

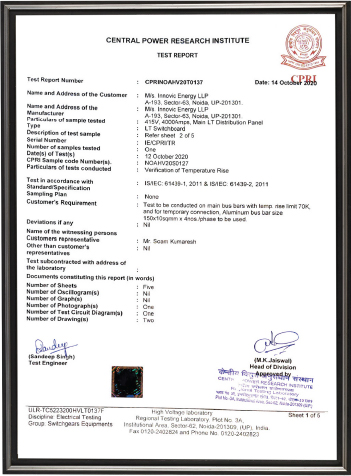

TESTING OF ELECTRICAL

PANELS / SWITCH BOARDS

Aluminium and Copper Conductivity Meter
Salt Spray Test
Di Electric Test
Relay Function Testing Kit
Insulation Resistance
Functional Check/Operation Check Equipment
CT Secondary Current Injection Test
High Voltage Testing Kit upto 2.5 KV
High Voltage Testing Kit upto 3 KV
High Voltage Testing Kit upto 100 KV

DESIGN AND ENGINEERING

In order to initiate any project, the foremost aspect that needs to be focused upon is design; apropos to this the design and engineering team at INNOVIC needed by Pawan Kumar Head Design & Development is one of the most experienced to prepare a custom built plan for the Electrical Switch Boards. The manufacturing drawings are prepared with the use of latest versions of Autocad and engineering software with attention to every detail-sheet metal construction information, surface treatment and finish, equipument list and identification, thorough general arrangement, single line and control schematic diagrams.

QUALITY

We at INNOVIC, believe that for every business to run successfully, it is of utmost importance that a relationship is built with every client. As a way to form and maintain this relationship it is obligatory for us to provide the finest quality product. Our highly experienced and committed team of professionals ensures that this quality is achieved through our cohesive manufacturing process. All the products are tested in the most severe conditions to withstand any adversity.

AFTER SALES SERVICES

The heart of our business is our clientele and we aim to provide exceptional 24x7 service that leaves them feeling valued and respected. We go above and beyond to help our customers with dedicated service support for all our products. We pride ourselves on our ability to deliver the finest quality products and then follow up for further sustenance. A happy and satisfied customer is our mission across the organisation and we aim toachieve just that with each and every project.
